Kia Optima: Inspection - Power Seat Control Switch. Repair procedures - Seat Electrical - Body Electrical System - Kia Optima TF 2011-2023 Service ManualKia Optima: Inspection

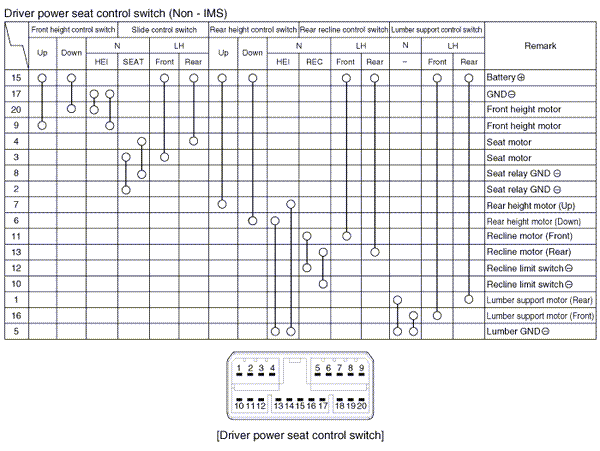

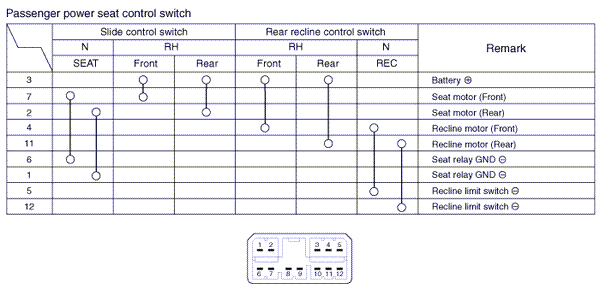

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

A : Power seat control switch

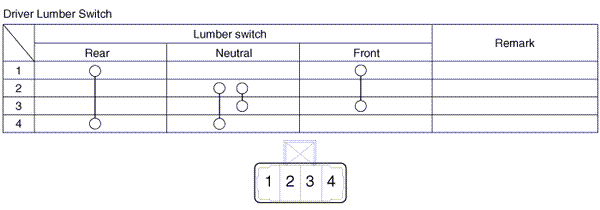

B : Lumber support switch


Power Seat Control Switch. Repair procedures
...

Removal
1. Disconnect the negative (-) battery terminal. 2. Remove the seat control switch (A). 3. Remove the seat side cover (A). (Refer to the BD ...
