Kia Optima: Driver Airbag (DAB) Module and Clock Spring. Components and Components Location - Airbag Module - Restraint - Kia Optima TF 2011-2023 Service ManualKia Optima: Driver Airbag (DAB) Module and Clock Spring. Components and Components Location

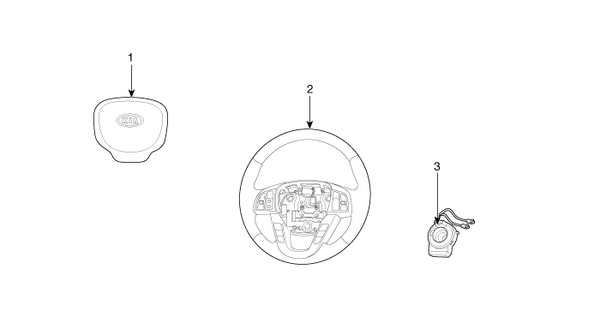

Components

1. Driver Airbag (DAB)
2. Steering Wheel
3. Clock Spring


Driver Airbag (DAB) Module and Clock Spring. Description and Operation
Description Driver Airbag (DAB) is installed in the steering wheel and electrically connected to SRSCM via the clock spring. It protects the driver by deploying the airbag when frontal crash occu ...
