Kia Optima: Components and Components Location - Button Engine Start System - Body Electrical System - Kia Optima TF 2011-2022 Service ManualKia Optima: Components and Components Location

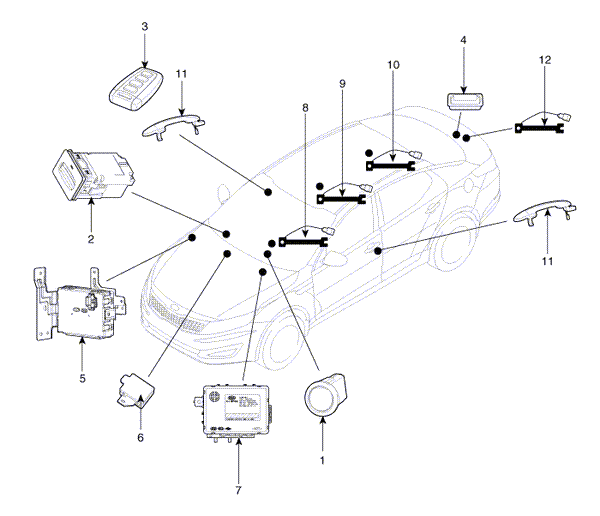

Component Location

1. Start Stop Button(SSB)
2. FOB key holder
3. FOB key
4. Trunk lid open switch
5. Smart key unit
6. RF receiver
7. Body control module
8. Interior antenna 1
9. Interior antenna 2
10. Trunk antenna
11. Door handle & door antenna
12. Bumper antenna
