Kia Optima: Components and Components Location - Rear Parking Assist System - Body Electrical System - Kia Optima TF 2011-2023 Service ManualKia Optima: Components and Components Location

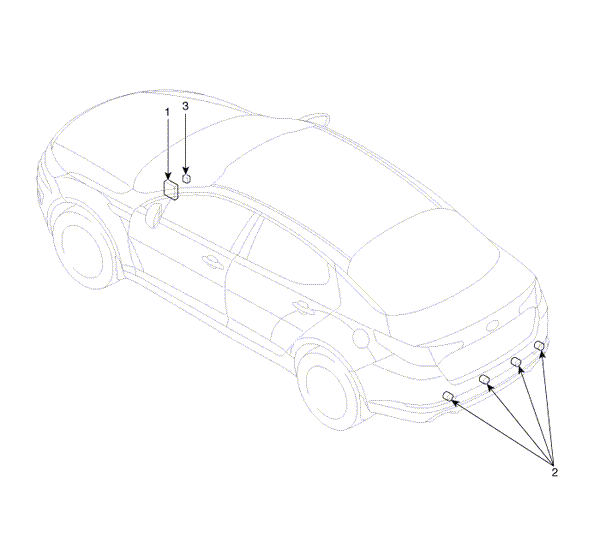

Component Location

1. BCM
2. Ultrasonic sensor
3. Buzzer

※ Rear parking assist control unit function and buzzer are built in BCM (body control unit).


Specifications
Specification Item Specification Ultrasonic sensor Voltage rating DC 8.5 V Detecting range 40 cm ~ 120 cm ...

Description and Operation
System Overview RPAS(Rear Parking Assist System) is an electronic driving aid device warning driver to be cautious when they park or speed low after detecting an object on side and behind of vehi ...
