Kia Optima: Component Location (2) - Components and Components Location - Smart key System - Body Electrical System - Kia Optima TF 2011-2024 Service ManualKia Optima: Component Location (2)

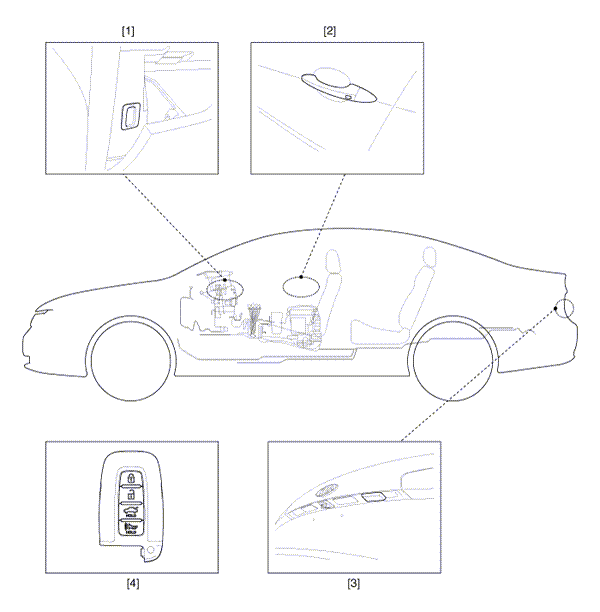

1. FOB holder
2. Door outside handle
3. Trunk lid open switch
4. FOB key
