Kia Optima: Tilting the sunroof - Panorama sunroof - Features of your vehicle - Kia Optima TF 2011-2020 Owners ManualKia Optima: Tilting the sunroof

When the sunshade is closed

When the sunshade is closed

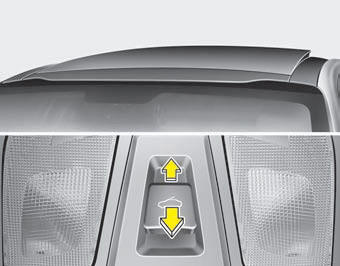

If you push the sunroof control lever upward, the sunshade will slide all the way open then the sunroof glass will tilt. To stop the sunroof movement at any point, pull or push the sunroof control lever momentarily.

When the sunshade is opened

If you push the sunroof control lever upward, the sunroof glass will tilt. To stop the sunroof movement at any point, pull or push the sunroof control lever momentarily.

Sliding the sunroof
When the sunshade is closed If you pull the sunroof control lever backward to the second detent position, the sunshade will slide all the way open then the sunroof glass will slide all the way ...

Closing the sunroof
To close the sunroof glass only Push the sunroof control lever forward to the first detent position or pull the lever downward. To close the sunroof glass with the sunshade Push the sunroof contr ...
