Kia Optima: Room lamp

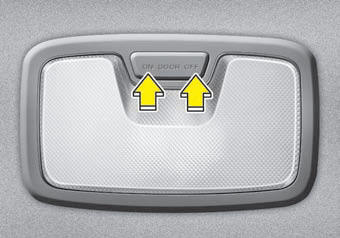

Type A

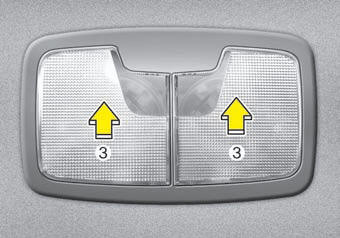

Type B
Type B
- DOOR : In the DOOR position, the map lamp and the room lamp come on when
any door is opened regardless of the ignition switch position. When doors are
unlocked by the transmitter (or smart key), the map lamp and the room lamp come
on for approximately 30 seconds as long as any door is not open.
The map lamp
and the room lamp goes out gradually after approximately 30 seconds if the door
is closed. However, if the ignition switch is ON or all doors are locked, the
map lamp and the room lamp will turn off immediately. If a door is opened with
the ignition switch in the ACC or LOCK position, the map lamp and the room lamp
stays on for about 20 minutes.
However, if a door is opened with the ignition
switch in the ON position, the map lamp and the room lamp stays on continuously.
- OFF : The lights turn off even if a door is opened.
- ON : The room lamp stay on at all times.
Push the lens to turn the map lamp on or off. This light produces a spot beam
for convenient use as a map lamp at night or as a personal lamp for the driver and
the front passenger.
• DOOR : In ...
The trunk room lamp comes on when the trunk is opened.
CAUTION
The trunk room lamp comes on as long as the trunk lid opens. To prevent unnecessary
charging system drain, close the trunk lid sec ...
