Kia Optima: Power Window Motor. Schematic Diagrams - Power Windows - Body Electrical System - Kia Optima TF 2011-2019 Service ManualKia Optima: Power Window Motor. Schematic Diagrams

Circuit Diagram


Description and Operation

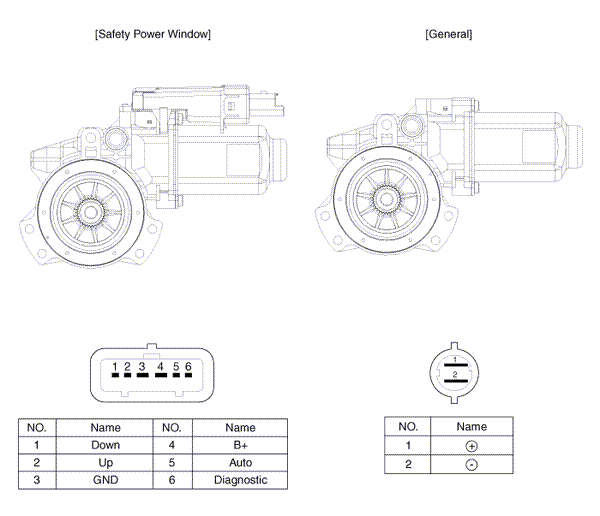

Operation Function Of Safety Power WindowWhen all door (Front, Rear) power window auto-up switch is operated, safety function is activated. 1. Safety function conditionWhen detect th ...

Power Window Motor. Repair procedures
Inspection Front Power Window Motor Inspection 1. Remove the front door trim panel. (Refer to the BD group - "Front door") 2. Disconnect the connector from ...
