Kia Optima: Placing a Passenger Safety Belt Into The Auto Lock Mode
The use of the auto lock mode will ensure that the normal movement of the child in the vehicle does not cause the safety belt to be pulled out and loosen the firmness of its hold on the child restraint system. To secure a child restraint system in the front passenger seat or rear outboard seats, use the following procedure.
Placement of a Child Restraint System
We recommend that, whenever possible, you put the child restraint in the center
position of the rear seat and secure it to the vehicle with the lap belt.
If the center rear seat is not available, o ...

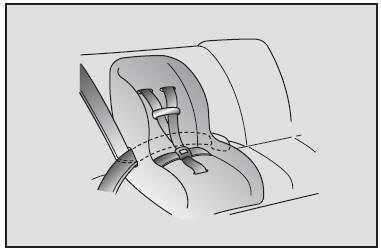

Installing a Child Restraint System in the Front Seat and Rear Outboard Seats
1. Place the child restraint system in the seat and route the lap/shoulder belt
around or through the restraint, following the restraint manufacturer’s instructions.
Be sure the safety belt webb ...
