Type A
Type B
Checking the parking brake

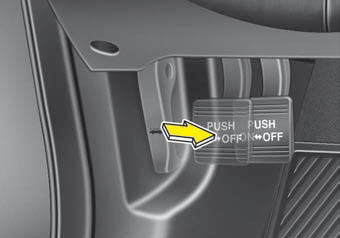

Type A
Check whether the stroke is within specification when the parking brake pedal is depressed with 20 kg (44 lb, 196 N) of force. Also, the parking brake alone should securely hold the vehicle on a fairly steep grade.
If the stroke is more or less than specified, have the parking brake adjusted by an authorized Kia dealer.

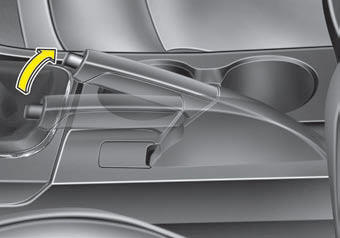

Type B
Check the stroke of the parking brake by counting the number of “clicks’’ heard while fully applying it from the released position. Also, the parking brake alone should securely hold the vehicle on a fairly steep grade.
If the stroke is more or less than specified, have the parking brake adjusted by an authorized Kia dealer.
Stroke : 6~8 “clicks’’ at a force of 20 kg (44 lbs, 196 N).
