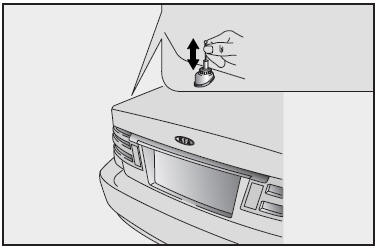

Your car uses a manual stainless steel antenna to receive both AM and FM broadcast signals. Pull up the antenna using your fingers, as shown in the drawing.
✽ NOTICE
Before entering an automatic car wash be sure that the antenna is fully retracted.
