Kia Optima: Knock Sensor (KS). Schematic Diagrams - Engine Control System - Engine Control/Fuel System - Kia Optima TF 2011-2020 Service ManualKia Optima: Knock Sensor (KS). Schematic Diagrams

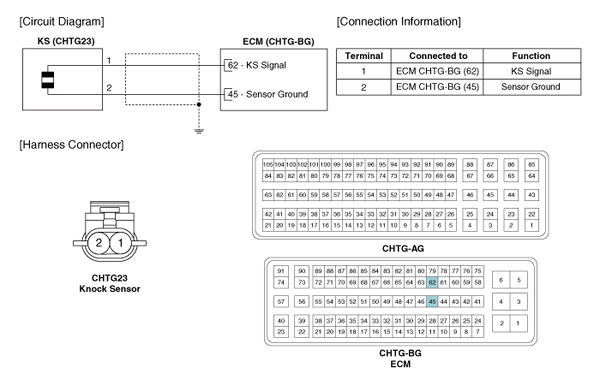

Circuit Diagram
