Kia Optima: Head Lamps. Components and Components Location - Lighting System - Body Electrical System - Kia Optima TF 2011-2021 Service ManualKia Optima: Head Lamps. Components and Components Location

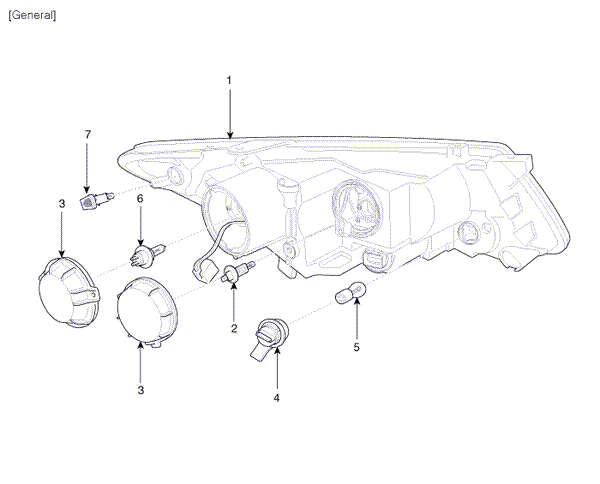

Component(1)

1. Head lamp assembly lens & housing
2. Head lamp (High) lamp
3. Dust cap
4. Socket
5. Turn signal/ Position lamp
6. Head lamp (Low) lamp
7. Side marker

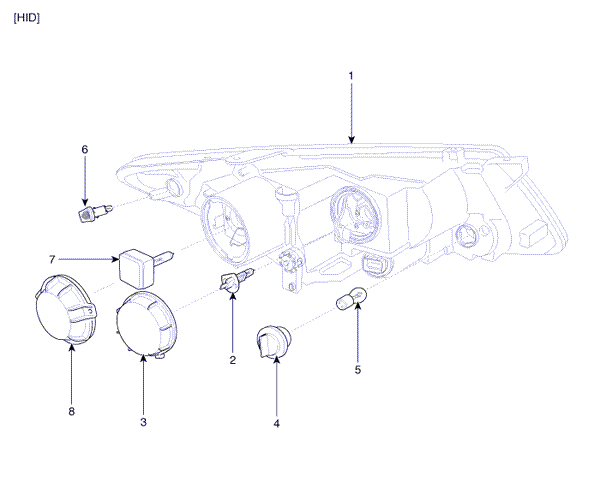

Component(2)

1. Head lamp assembly lens & housing
2. Head lamp (High) lamp
3. Dust cap
4. Socket
5. Turn signal/ Position lamp
6. Side marker
7. Head lamp(LOW) bulb (HID) & Ignitor
8. Dust cover(LOW)


Components and Components Location
Component Location(1) 1. Head lamp (Low) 2. Head lamp (High) / Head lamp (High) & DRL in Canada 3. Turn signal & position lamp 4. Side marker 5. Front fog lamp ...

Head Lamps. Description and Operation
HID Head Lamp 1. Bulb (1) ElementsXenon gas: Xenon gas activates the initial reaction for rapid illuminating. Molybdenum electrode: anode arcingMetal halide salts: ...
