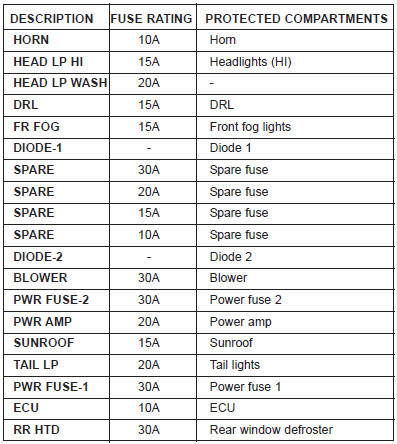

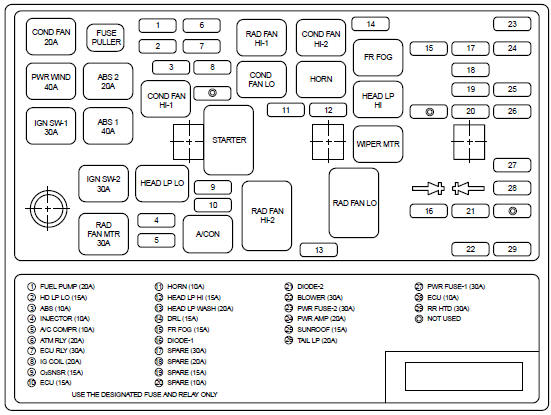

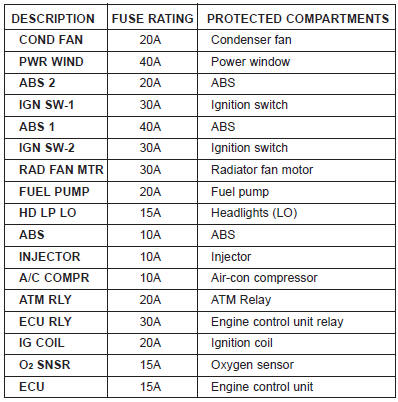

Kia Optima: Fuse Panel Description (Engine compartment) - Electrical Circuit Protection - In Case Of An Emergency - Kia Optima MS/Magentis 2000-2005 Owners ManualKia Optima: Fuse Panel Description (Engine compartment)

Passenger Compartment Fuse Panel Description (Drivers side kick panel)

Fuse Replacement
WARNING - Fuse Replacement Never replace a fuse with anything but another fuse of the same rating. A higher capacity fuse could cause damage and possibly a fire. Never install a wire inst ...

Passenger Compartment Fuse Panel Description (Drivers side kick panel)
...
