Kia Optima: Fuel Tank Pressure Sensor (FTPS). Schematic Diagrams - Engine Control System - Engine Control/Fuel System - Kia Optima TF 2011-2021 Service ManualKia Optima: Fuel Tank Pressure Sensor (FTPS). Schematic Diagrams

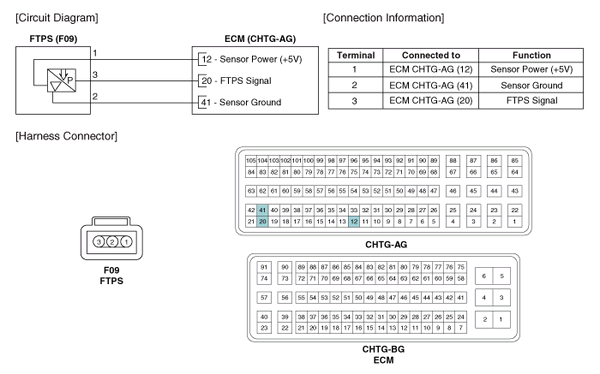

Circuit Diagram


Fuel Tank Pressure Sensor (FTPS). Specifications
Specification Pressure [kPa (kgf/cm², in H2O) Output Voltage (V) -6.67 (-0.068, -26.8) 0.5 0 2.5 ...

Fuel Tank Pressure Sensor (FTPS). Repair procedures
...
