Kia Optima: Front Seat. Components and Components Location - Seat & Power Seat - Body (Interior and Exterior) - Kia Optima TF 2011-2019 Service ManualKia Optima: Front Seat. Components and Components Location

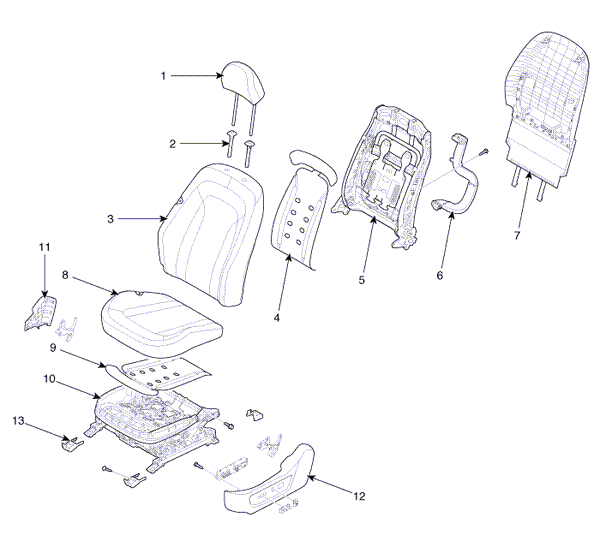

Components

1. Headrest
2. Headrest guide
3. Front seat back cover
4. Front seat back warmer
5. Front seat back frame
6. Front seat duct
7. Front seat back board
8. Front seat cushion cover
9. Front seat cushion warmer
10. Front seat cushion frame
11. Front shield inner cover
12. Front seat outer shield cover
13. Foot mounting cover
