Kia Optima: Engine compartment - Your vehicle at a glance - Kia Optima TF 2011-2019 Owners ManualKia Optima: Engine compartment

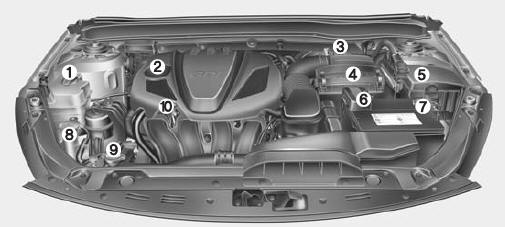

2.4L Engine

2.4L Engine

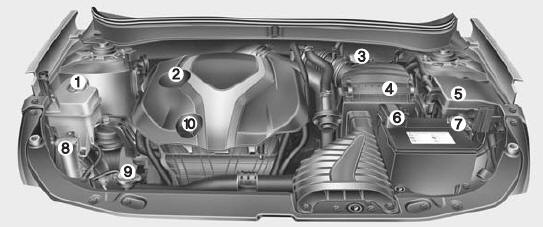

2.0L Engine

2.0L Engine

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake/clutch* fluid reservoir
4. Air cleaner
5. Fuse box
6. Positive battery terminal
7. Negative battery terminal
8. Windshield washer fluid reservoir
9. Radiator cap
10. Engine oil dipstick
* : if equipped
