Kia Optima: Diagnosis procedure by using diagnostic device - TPMS Receiver. Repair procedures - Tire Pressure Monitoring System - Suspension System - Kia Optima TF 2011-2020 Service ManualKia Optima: Diagnosis procedure by using diagnostic device

As manual for diagnosis methods by using diagnosis device, the main contents are as follows:

1. Connect self-diagnosis connector(16pins) located in the lower of driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.
2. Select the "vehicle model" and "TPMS" on GDS vehicle selection screen, then select OK.

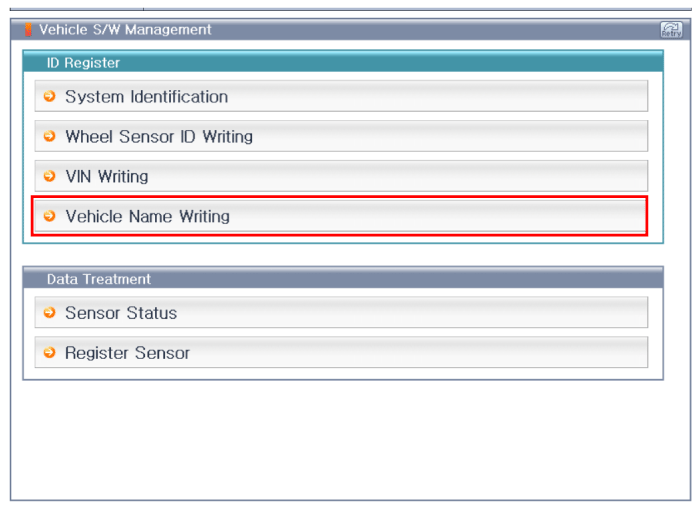

[Vehicle name input initialization]

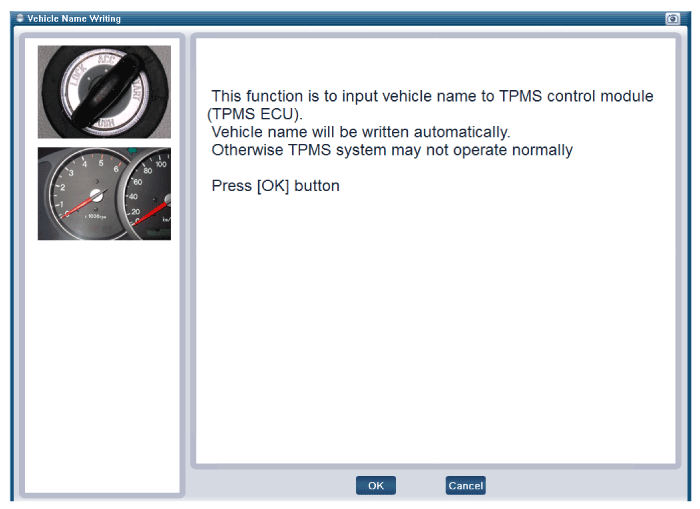

[Vehicle Name Writing 1]

[Vehicle Name Writing 1]

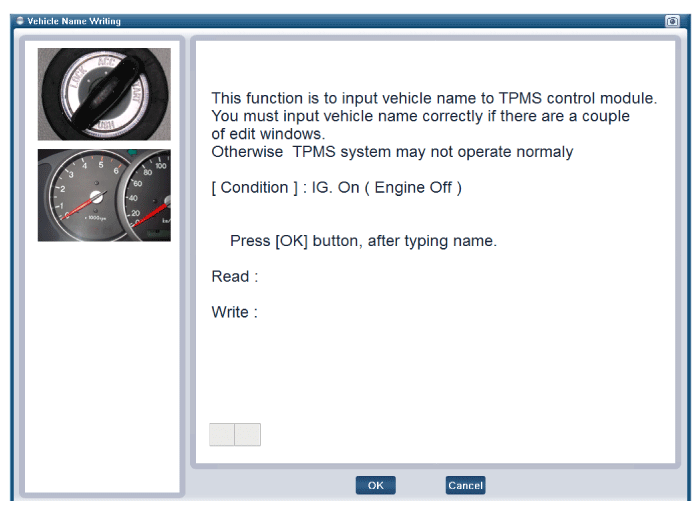

[Vehicle Name Writing 2]

[Vehicle Name Writing 2]

Х Check the specifications for the vehicle and the selected item option, press the OK button and enter is completed.
Х When you input the vehicle name, check the tire inch and exactly input inch option to device.

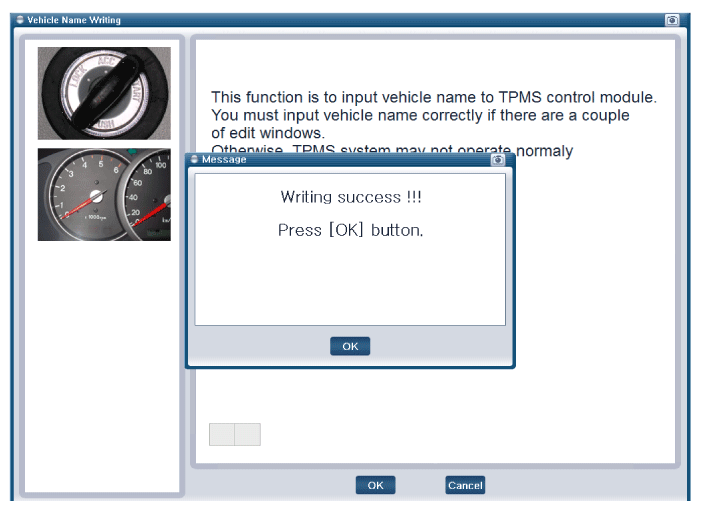

[Vehicle Name Writing 3]

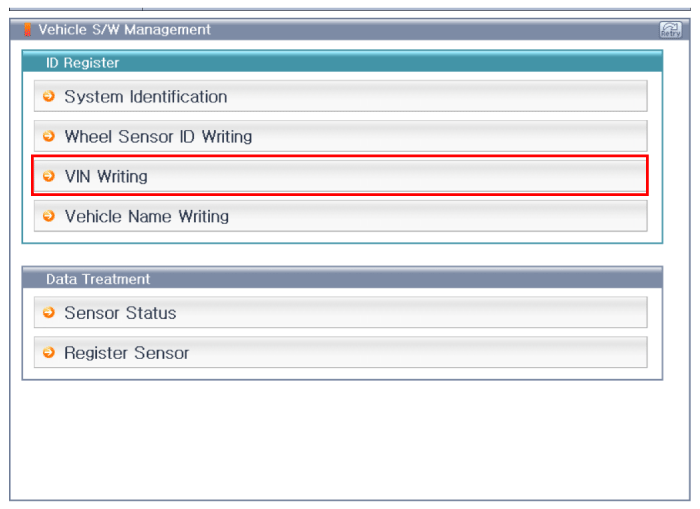

[VIN input initialization]

[VIN input initialization]

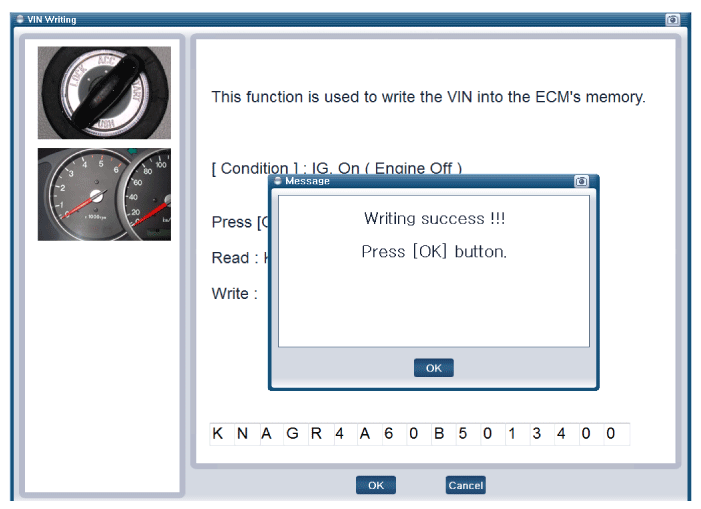

[VIN Writing 1]

[VIN Writing 1]

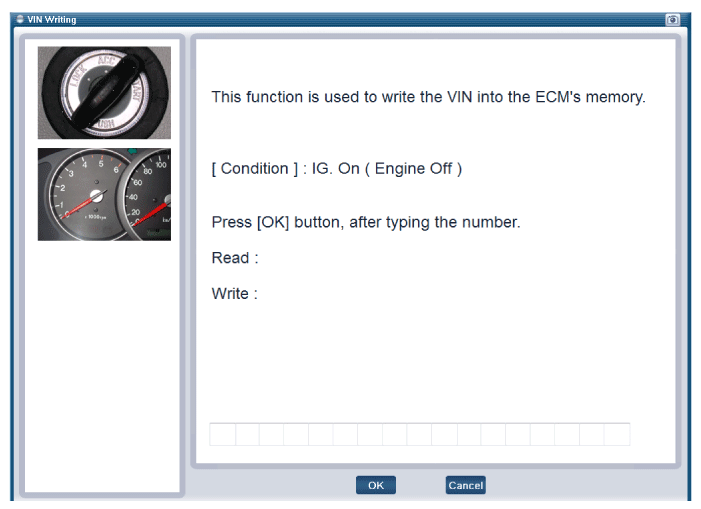

[VIN Writing 2]

[VIN Writing 2]

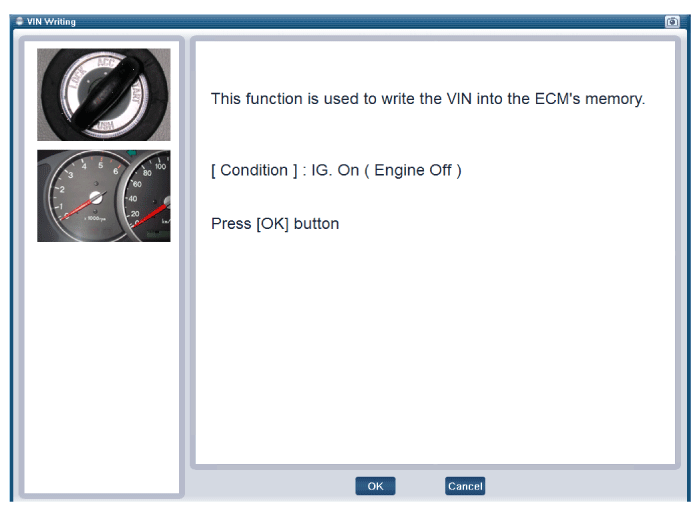

[VIN Writing 3]

[VIN Writing 3]
