Most of the air flow is directed to the windshield with a small amount of air directed to the side window defrosters.
When the defrost button is pressed the outside (fresh) air position will automatically selected and the air will be discharged through the windshield defrost vents. The air conditioning will automatically operate based on ambient temperature. If you don’t want the air-conditioning or outside (fresh) air position press the corresponding button to cancel the operation.

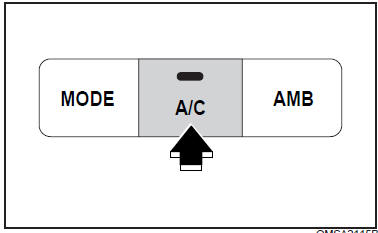

Air Conditioning Button
Push the A/C button to turn the air conditioning system on. The indicator light in the button will illuminate when the fan speed control knob is on. Push the button again to turn the air conditioning system off.
Function
Function RequirementsThe BCM controls IPS and relay on the SJB. For example,
if BCM requests head lamp low beam control, then BCM requests related lamp control
at one time.
Signal Flow DiagramThi ...
Engine temperature gauge
This gauge shows the temperature of the engine coolant when the ignition switch
is ON.
Do not continue driving with an overheated engine. If your vehicle overheats,
refer to “If the engine over ...
