Kia Optima: Crash Pad. Components and Components Location - Interior - Body (Interior and Exterior) - Kia Optima TF 2011-2021 Service ManualKia Optima: Crash Pad. Components and Components Location

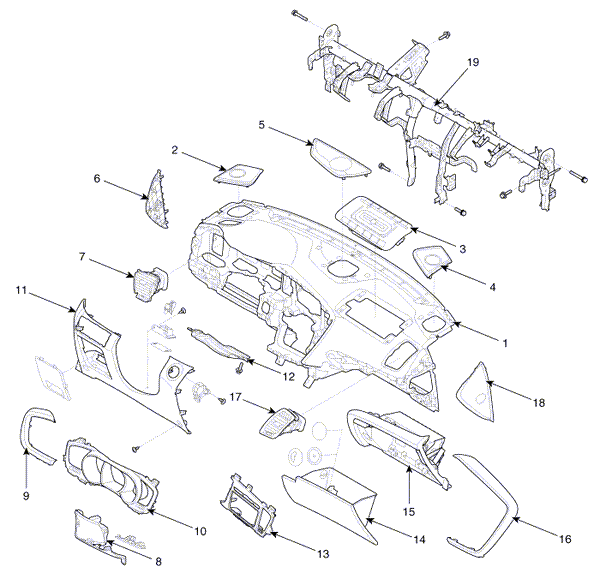

Components

1. Main crash pad assembly
2. Side speaker grille [LH]
3. Airbag blanking cover
4. Side speaker grille [RH]
5. Center speaker grille
6. Crash pad side cover [LH]
7. Side air vent duct [LH]
8. Center facia lower panel
9. Crash pad garnish [LH]
10. Cluster fascia panel
11. Crash pad lower panel
12. Reinforcing panel
13. Center facia upper panel
14. Glove box
15. Glove box housing
16. Crash pad garnish [RH]
17. Side air vent duct [RH]
18. Crash pad side cover [RH]
19. Cowl cross bar assembly


Console. Repair procedures
Replacement Floor Console Replacement [M/T] • When prying with a flat-tip screwdriver, wrap it with p ...

Crash Pad. Repair procedures
Replacement Cluster Replacement • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply ...
