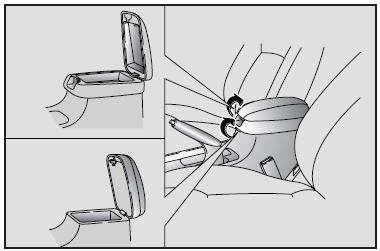

To access the console storage compartment, pull up on the locking tab at the forward end of the console lid and lift center console lid.
