Kia Optima: Console. Components and Components Location - Interior - Body (Interior and Exterior) - Kia Optima TF 2011-2020 Service ManualKia Optima: Console. Components and Components Location

Components

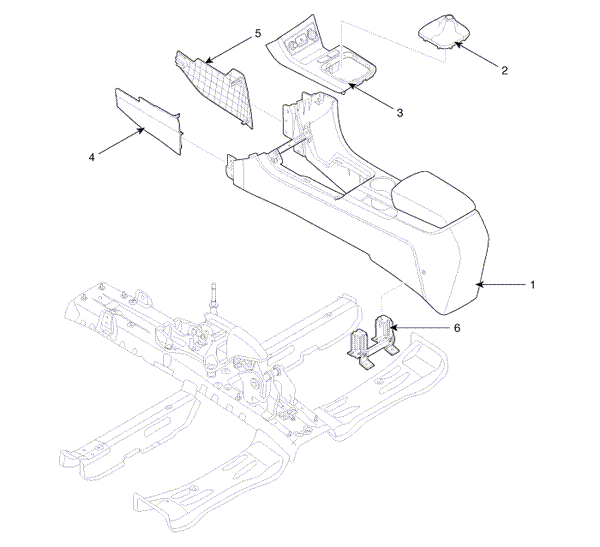

[M/T]

1. Floor console assembly
2. Gear boots
3. Floor console upper cover
4. Floor console extension cover [LH]
5. Floor console extension cover [RH]
6. Console rear bracket

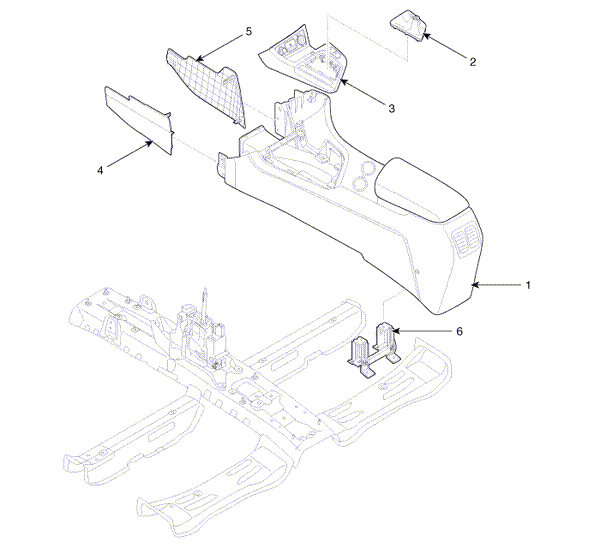

[A/T]

1. Floor console assembly
2. Gear boots
3. Floor console upper cover
4. Floor console extension cover [LH]
5. Floor console extension cover [RH]
6. Console rear bracket
