Kia Optima: Components and Components Location - Auto Lighting Control System - Body Electrical System - Kia Optima TF 2011-2020 Service ManualKia Optima: Components and Components Location

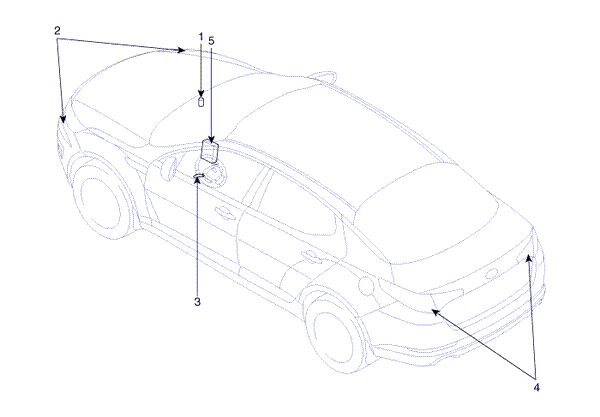

Component Location

1. Auto light sensor
2. Head lamps
3. Lighting switch (Auto)
4. Tail lamps
5. Body control module (BCM)


Specifications
Specifications Items Specifications Rated voltage 5V Load Max. 1mA (When head lamp lighting) Illuminat ...

Schematic Diagrams
Circuit Diagram ...
