Kia Optima: Components and Components Location - Seat Electrical - Body Electrical System - Kia Optima TF 2011-2020 Service ManualKia Optima: Components and Components Location

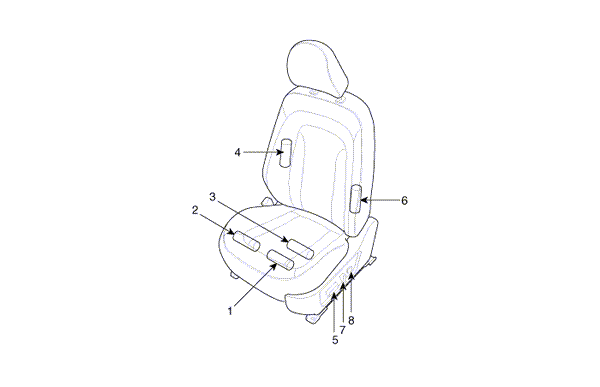

Component Location

1. Slide motor
2. Front height motor
3. Rear height motor
4. Lumber support motor
5. Power seat control switch
6. Recline motor
7. Recline control switch
8. Lumber support switch
