Kia Optima: Components and Components Location - Electric Power Steering - Steering System - Kia Optima TF 2011-2019 Service ManualKia Optima: Components and Components Location

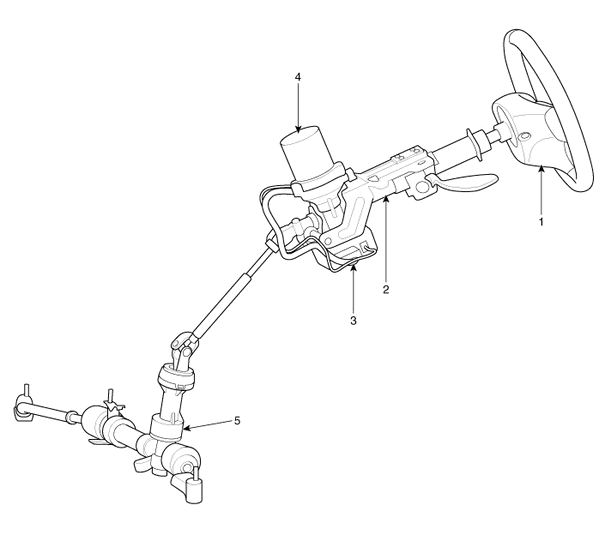

Components

1. Steering wheel
2. Steering column
3. ECU
4. Motor
5. Steering gear box

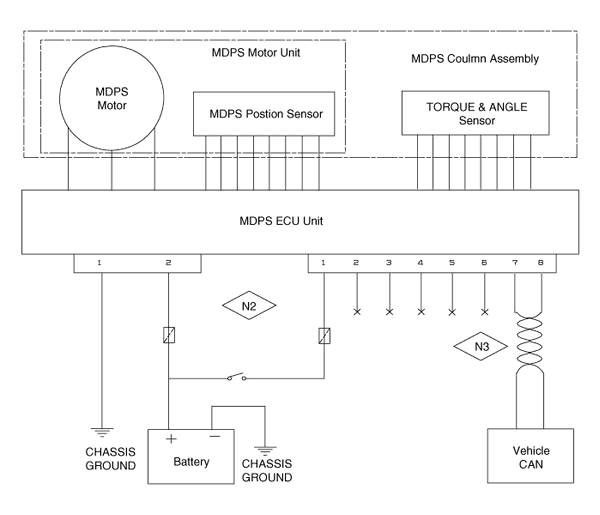

MDPS Circuit Diagram

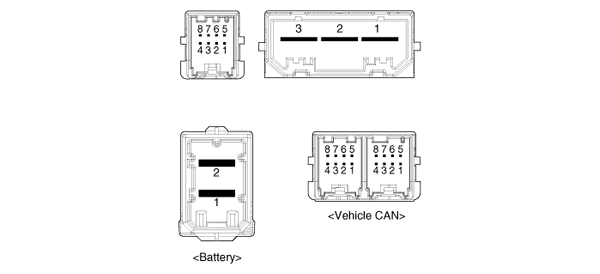

Harness Connector

Type
Pin No
Description
Battery
1
Battery -
2
Battery +
Vehicle
1
IGN
2
-
3
-
4
-
5
-
6
-
7
High_CAN
8
Low_CAN
