Kia Optima: Components and Components Location - Automatic Transaxle Control System - Automatic Transaxle System - Kia Optima TF 2011-2021 Service ManualKia Optima: Components and Components Location

Components Location

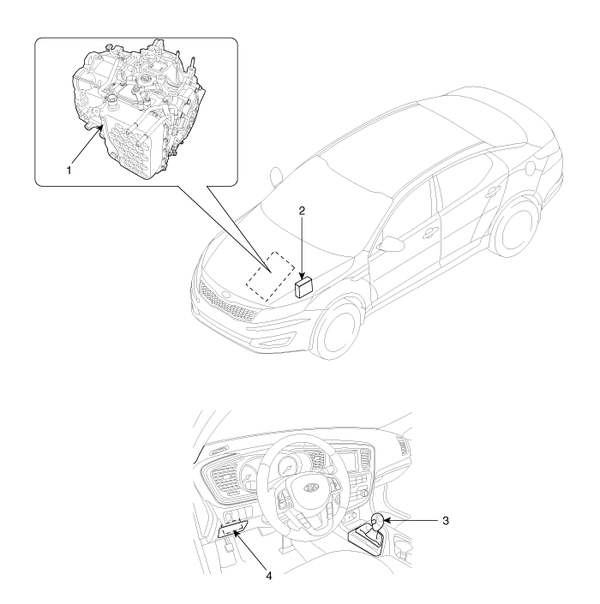

[Vehicle Components]

1. Automatic transaxle
2. Transaxle control module (TCM)
3. Shift lever
4. DLC

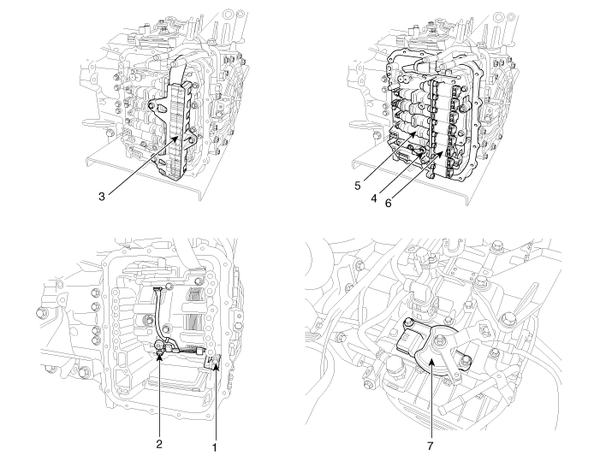

[Transaxle Components]

1. Input speed sensor
2. Output speed sensor
3. Solenoid valve connect
4. Oil temperature sensor
5. Valve body assembly
6. Solenoid valve
7. Inhibitor switch


Schematic Diagrams
Circuit Diagram ...

Transaxle Control Module (TCM). Description and Operation
Description Transaxle Control Module (TCM) is the automatic transaxle's brain. The module receives and processes signals from various sensors and implements a wide range of transaxle controls ...
