Kia Optima: Components(2) - Rear Bumper. Components and Components Location - Bumper - Body (Interior and Exterior) - Kia Optima TF 2011-2020 Service ManualKia Optima: Components(2)

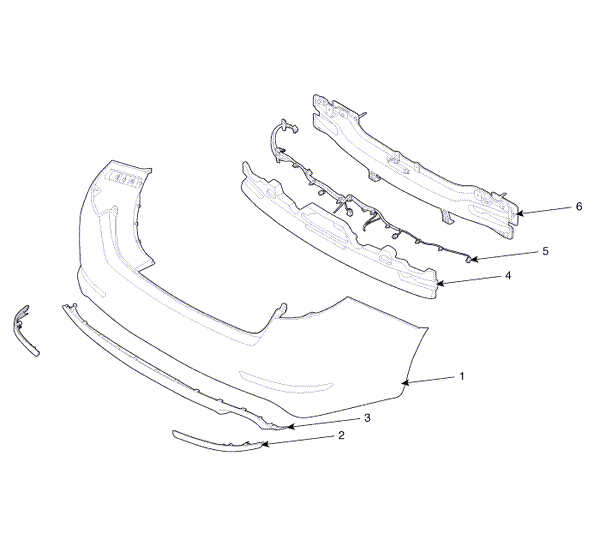

1. Rear bumper cover
2. Rear reflector
3. Rear bumper lower cover
4. Rear bumper energy absorber
5. Wiring harness
6. Rear bumper beam assembly
