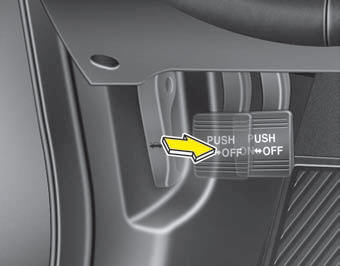

Foot type
To engage the parking brake, first apply the foot brake and then depress the parking brake pedal down as far as possible.

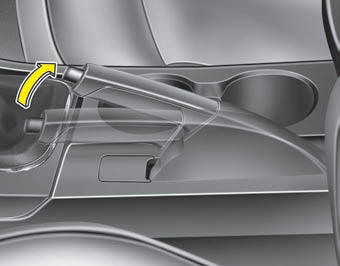

Hand type
To engage the parking brake, first apply the foot brake and then pull up the parking brake lever as far as possible.
In addition it is recommended that when parking the vehicle on a incline, the shift lever should be in a low gear on manual transaxle vehicles or in the P (Park) position on automatic transaxle vehicles.
CAUTION
