Kia Optima: Removal - Multimedia jack. Repair procedures - Audio - Body Electrical System - Kia Optima TF 2011-2021 Service ManualKia Optima: Removal

1. Remove the shift lever knob.

(Refer to the BD group - "Console")

2. Remove the console upper cover (A).

3. Disconnect the connector from the console upper cover.

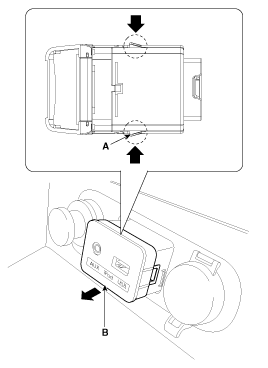

4. Remove the multimedia jack (B) from the console under cover after releasing the fixed hooks (A).


Multimedia jack. Repair procedures
...

Installation
1. Install the multimedia jack. 2. Connect the multimedia jack connector. 3. Install the console upper cover. 4. Install the shift lever knob. ...
